XVM系列振動電機產品介紹：
XVM系列振動電機是一種新型振動電機產品，設計精巧，運行安全可靠，安裝維護方便，簡化結構、降低成本，使得振動篩對物料的處理量更大；激振力能在一定范圍內非常容易地進行無極調節，滿足各種作業需求；使用新型密封技術及進口密封件，大大提高了振動電機的防塵防潮能力，產品能在各種高塵高潮濕場所安全穩定運行；各項先進的設計及精密的制造過程，確保產品具有特長使用壽命。
XVM系列振動電機是在雙軸伸的轉子軸兩端各安裝一組可調偏心塊，利用偏心塊旋轉產生的離心力得到激振力。振動電機的激振力大、能耗小、噪聲低、壽命長。它使用于料倉、料斗、溜槽的倉壁振動，還是自同步直線振動篩、振動給料機、振動輸送機等各種振動機械的激振源，是冶金、礦山、煤炭、建材、化工等部門的理想設備，有廣泛的應用范圍。

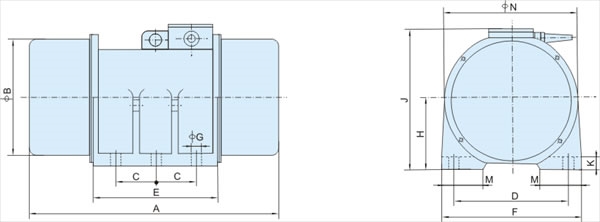

XVM-A系列振動電機產品尺寸圖及參數表：
|
型號
|
振次r.p.m
|
最大激振力
|
功率
|
電流
|
功率因數
|
效率
|
起動電流倍數
|
重量
|
圖號
|
外型及安裝尺寸
(mm)
|
緊固螺栓
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
M
|
|
[N]
|
[kw]
|
[kg]
|
|
xvm0.7-2
|
|
700
|
0.15
|
0.38
|
0.86
|
70
|
3.8
|
12
|
A
|
240
|
92
|
90
|
130
|
120
|
160
|
11
|
70
|
160
|
22
|
40
|
M10
|
|
xvm1.5-2
|
1500
|
0.15
|
0.38
|
0.86
|
70
|
3.8
|
16
|
A
|
240
|
92
|
90
|
130
|
120
|
160
|
11
|
70
|
160
|
22
|
40
|
M10
|
|
xvm2.5-2
|
2500
|
0.25
|
0.58
|
0.86
|
76
|
4.6
|
20
|
A
|
310
|
143
|
100
|
140
|
130
|
170
|
13
|
80
|
180
|
26
|
45
|
M12
|
|
xvm 5-2
|
5000
|
0.40
|
1.01
|
0.83
|
72
|
4.8
|
32
|
A
|
342
|
173
|
120
|
150
|
160
|
200
|
18
|
100
|
240
|
36
|
54
|
M16
|
|
xvm 8-2
|
8000
|
0.75
|
1.76
|
0.88
|
74
|
6.3
|
48
|
B
|
390
|
192
|
140
|
170
|
210
|
220
|
18
|
110
|
270
|
20
|
60
|
M16
|
|
xvm 16-2
|
16000
|
1.10
|
2.80
|
0.86
|
70
|
6.1
|
76
|
B
|
466
|
250
|
180
|
235
|
230
|
285
|
19
|
140
|
315
|
22
|
75
|
M18
|
|
xvm 25-2
|
25000
|
1.80
|
4.30
|
0.90
|
71
|
5.6
|
110
|
B
|
560
|
285
|
224
|
270
|
274
|
330
|
21
|
157
|
340
|
24
|
80
|
M20
|
|
xvm 32-2
|
32000
|
2.20
|
5.10
|
0.90
|
73
|
6.3
|
168
|
B
|
600
|
320
|
180
|
350
|
270
|
420
|
32
|
176
|
390
|
26
|
100
|
M30
|
|
xvm 50-2
|
50000
|
3.50
|
8.18
|
0.89
|
73
|
7.9
|
216
|
B
|
680
|
373
|
155
|
390
|
310
|
470
|
34
|
198
|
420
|
30
|
110
|
M33
|
|
xvm 1.2-4
|
1460
|
1200
|
0.07
|
0.30
|
0.61
|
60
|
3.0
|
16
|
A
|
240
|
92
|
90
|
130
|
120
|
160
|
11
|
70
|
160
|
22
|
40
|
M10
|
|
xvm 2.5-4
|
2500
|
0.10
|
0.32
|
0.69
|
66
|
4.6
|
24
|
A
|
310
|
143
|
100
|
140
|
130
|
170
|
13
|
80
|
180
|
26
|
45
|
M12
|
|
xvm 5-4
|
5000
|
0.20
|
0.65
|
0.67
|
70
|
5.4
|
42
|
A
|
378
|
173
|
120
|
150
|
160
|
200
|
18
|
100
|
240
|
36
|
54
|
M16
|
|
xvm 8-4
|
8000
|
0.40
|
1.14
|
0.72
|
73
|
6.2
|
58
|
B
|
410
|
192
|
140
|
170
|
210
|
220
|
18
|
110
|
270
|
20
|
60
|
M16
|
|
xvm 16-4
|
16000
|
0.75
|
2.08
|
0.74
|
74
|
6.6
|
82
|
B
|
466
|
250
|
180
|
235
|
230
|
285
|
19
|
140
|
315
|
22
|
75
|
M18
|
|
xvm 32-4
|
32000
|
2.00
|
4.73
|
0.84
|
77
|
6.1
|
142
|
B
|
560
|
285
|
224
|
270
|
274
|
330
|
21
|
157
|
340
|
24
|
80
|
M20
|
|
xvm 50-4
|
5000
|
2.50
|
6.25
|
0.83
|
73
|
6.1
|
180
|
B
|
600
|
320
|
180
|
350
|
270
|
420
|
32
|
176
|
390
|
26
|
100
|
M30
|
|
xvm 75-4
|
75000
|
4.00
|
10.14
|
0.82
|
74
|
6.6
|
245
|
B
|
680
|
373
|
155
|
390
|
310
|
470
|
34
|
198
|
420
|
30
|
110
|
M33
|
|
xvm100-4
|
100000
|
6.50
|
16.88
|
0.82
|
71
|
7.6
|
465
|
C
|
860
|
420
|
140
|
440
|
420
|
520
|
34
|
240
|
490
|
35
|
120
|
M33
|
|
xvm 120-4
|
120000
|
8.00
|
19.40
|
0.83
|
76
|
7.5
|
508
|
C
|
890
|
420
|
140
|
440
|
420
|
520
|
34
|
240
|
490
|
35
|
120
|
M33
|
|
xvm 140-4
|
140000
|
10.00
|
24.16
|
0.82
|
75
|
7.1
|
566
|
D
|
930
|
480
|
118
|
460
|
490
|
550
|
38
|
260
|
520
|
35
|
120
|
M36
|
|
xvm 160-4
|
160000
|
10.00
|
24.16
|
0.82
|
75
|
7.1
|
619
|
D
|
930
|
480
|
118
|
460
|
490
|
550
|
38
|
260
|
520
|
35
|
120
|
M36
|
|
xvm 2.5-6
|
980
|
2500
|
0.20
|
0.70
|
0.60
|
71
|
4.3
|
42
|
A
|
378
|
173
|
120
|
150
|
160
|
200
|
18
|
100
|
240
|
36
|
54
|
M16
|
|
xvm 5-6
|
5000
|
0.40
|
1.23
|
0.67
|
74
|
4.1
|
58
|
B
|
438
|
192
|
140
|
170
|
210
|
220
|
18
|
110
|
270
|
20
|
60
|
M16
|
|
xvm 10-6
|
10000
|
0.75
|
2.18
|
0.67
|
78
|
5.8
|
82
|
B
|
466
|
250
|
180
|
235
|
230
|
285
|
19
|
140
|
315
|
22
|
75
|
M18
|
|
xvm 16-6
|
16000
|
1.10
|
3.03
|
0.71
|
78
|
5.6
|
102
|
B
|
540
|
250
|
180
|
235
|
230
|
285
|
19
|
140
|
315
|
22
|
75
|
M18
|
|
xvm 20-6
|
20000
|
1.50
|
4.10
|
0.71
|
81
|
6.6
|
130
|
B
|
560
|
285
|
224
|
270
|
274
|
330
|
21
|
157
|
340
|
24
|
80
|
M20
|
|
xvm 30-6
|
30000
|
2.20
|
6.10
|
0.69
|
80
|
6.1
|
180
|
B
|
600
|
320
|
180
|
350
|
270
|
420
|
32
|
176
|
390
|
26
|
100
|
M30
|
|
xvm 40-6
|
40000
|
3.00
|
7.40
|
0.73
|
84
|
5.9
|
235
|
B
|
660
|
320
|
180
|
350
|
270
|
420
|
32
|
176
|
390
|
26
|
100
|
M30
|
|
xvm 50-6
|
50000
|
3.70
|
9.60
|
0.71
|
83
|
6.3
|
290
|
B
|
680
|
373
|
155
|
390
|
310
|
470
|
34
|
198
|
420
|
30
|
110
|
M33
|
|
xvm 75-6
|
7500
|
5.50
|
12.60
|
0.82
|
81
|
8.0
|
380
|
B
|
730
|
420
|
248
|
440
|
370
|
520
|
38
|
240
|
490
|
35
|
120
|
M36
|
|
xvm 100-6
|
100000
|
7.50
|
17.93
|
0.79
|
81
|
7.7
|
510
|
C
|
860
|
420
|
140
|
440
|
420
|
520
|
34
|
240
|
490
|
35
|
120
|
M33
|
|
xvm 120-6
|
120000
|
9.50
|
21.70
|
0.81
|
83
|
6.8
|
590
|
D
|
890
|
480
|
118
|
460
|
490
|
550
|
38
|
260
|
520
|
35
|
120
|
M36
|
|
xvm 140-6
|
140000
|
9.50
|
21.70
|
0.81
|
83
|
6.8
|
625
|
D
|
930
|
480
|
118
|
460
|
490
|
550
|
38
|
260
|
520
|
35
|
120
|
M36
|
|
xvm 160-6
|
160000
|
12.00
|
27.37
|
0.82
|
81
|
6.4
|
695
|
D
|
980
|
480
|
118
|
460
|
490
|
550
|
38
|
260
|
520
|
35
|
120
|
M36
|
|
xvm 180-6
|
180000
|
14.00
|
31.87
|
0.83
|
81
|
6.5
|
780
|
D
|
1050
|
510
|
120
|
520
|
531
|
610
|
45
|
270
|
560
|
38
|
125
|
M42
|
|
xvm 5-8
|
740
|
5000
|
0.40
|
1.62
|
0.57
|
68
|
3.2
|
82
|
B
|
466
|
250
|
180
|
235
|
230
|
285
|
19
|
140
|
315
|
22
|
75
|
M18
|
|
xvm 10-8
|
10000
|
0.75
|
2.90
|
0.57
|
72
|
4.1
|
131
|
B
|
560
|
285
|
224
|
270
|
274
|
330
|
21
|
157
|
340
|
24
|
80
|
M20
|
|
xvm 16-8
|
16000
|
1.50
|
4.02
|
0.70
|
80
|
4.6
|
149
|
B
|
600
|
285
|
224
|
270
|
274
|
330
|
21
|
157
|
340
|
24
|
80
|
M20
|
|
xvm 20-8
|
20000
|
2.20
|
5.93
|
0.69
|
80
|
4.7
|
185
|
B
|
600
|
320
|
180
|
350
|
270
|
420
|
32
|
176
|
390
|
26
|
100
|
M30
|
|
xvm 30-8
|
30000
|
3.00
|
8.10
|
0.69
|
82
|
5.6
|
292
|
B
|
680
|
373
|
155
|
390
|
310
|
470
|
34
|
198
|
420
|
30
|
110
|
M33
|
|
xvm 50-8
|
50000
|
4.00
|
10.60
|
0.69
|
82
|
6.0
|
380
|
B
|
730
|
420
|
248
|
440
|
370
|
520
|
38
|
240
|
490
|
35
|
120
|
M36
|
|
xvm 75-8
|
75000
|
6.50
|
17.10
|
0.68
|
81
|
5.6
|
510
|
C
|
860
|
420
|
140
|
440
|
420
|
520
|
34
|
240
|
490
|
35
|
120
|
M33
|
|
xvm 100-8
|
100000
|
8.50
|
21.80
|
0.73
|
81
|
5.4
|
625
|
D
|
930
|
480
|
118
|
460
|
490
|
550
|
38
|
260
|
520
|
35
|
120
|
M36
|
